Files and I/O

Posted on 2020-01-10 | In System Programming , Operating System

Goals

UNIX I/O Design Concepts
High-level File I/O: Streams
Low-level File I/O: File Descriptors
How and Why of High-level File I/O
Process State for File Descriptors
Common Pitfalls with OS Abstractions

UNIX I/O Design Concepts

Uniformity: Everything is a “File”
- file operations, device I/O, and interprocess communication through open, read/write, close
Identical interface for:
- Files on the disk
- Devices (terminals, printers, etc.)
- Regular files on the disk
- Networking (sockets)
- Local interprocess communication (pipes, sockets)
Based on the system calls
- open()
- read()
- write()
- close()
Additional: ioctl() for custom configuration that doesn’t quite fit
Open before use
- Provide opportunity for access control and arbitration
- Sets up the underlying machinery, i.e., data structures
Explicitly close
Byte-oriented
- Even if blocks are transferred, addressing is in bytes
- OS responsible for hiding the fact that real devices may not work this way (e.g. hard drive stores data in blocks)
Kernel buffered reads
- Part of making everything byte-oriented
- Process is blocked while waiting for device
- Let other processes run while gathering result
Kernel buffered writes
- Complete in background
- Return to user when data is “handed off” to kernel

The File System Abstraction

File
- Named collection of data in a file system
- POSIX File data: sequence of bytes
  - Could be text, binary, serialized objects, …
- File Metadata: information about the file
  - size, modification time, owner, security info, etc.
Directory
- “Folder” containing files & directories
- Hierarchical (graphical) naming
  - Path through the directory graph
  - Uniquely identifies a file or directory
    - /home/ff/cs162/public_html/fa18/index.html
- Links and Volumes

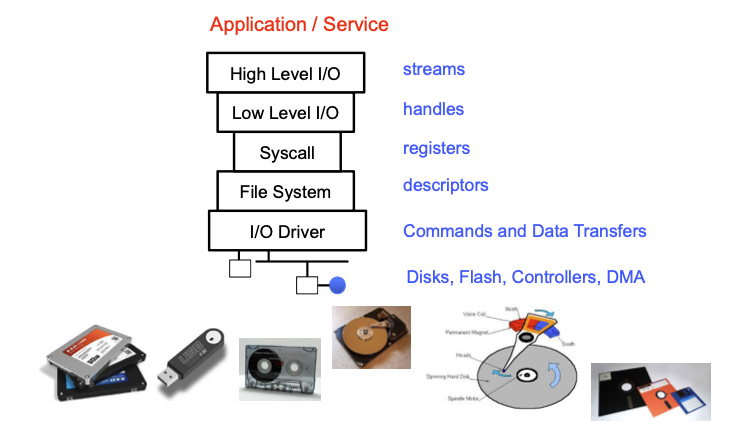

I/O and Storage Layers

High-Level File API – Streams

Operate on “streams” - sequence of bytes, whether text or data, with a position

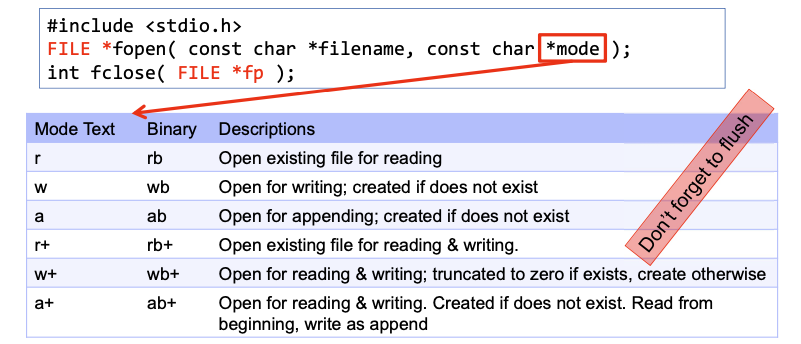

The fopen function returns a pointer to a FILE data structure. A null pointer will be returned if there is an error.

Standard Streams and C APIs

Three predefined streams are opened implicitly when a program/process is executed

FILE *stdin: normal source of input, can be redirected
FILE *stdout: normal source of output, can be redirected
FILE *stderr: diagnostics and errors, can be redirected

The STDIN / STDOUT enables composition in UNIX. All can be redirected, for instance, using pipe symbol: |:

# `cat`'s `stdout` goes to `grep`'s `stdin`
cat hello.txt | grep "World"

A file copy example:

#include <stdio.h>

#define BUFFER_SIZE = 1024

int main(void) {
    FILE* input = fopen("input.txt", "r");
    FILE* output = fopen("output.txt", "w");
    char buffer[BUFFER_SIZE];
    size_t length;
    // read the whole file and store the length
    length = fread(buffer, BUFFER_SIZE, sizeof(char), input);
    while(length > 0) {
        fwrite(buffer, length, sizeof(char), output);
        // update the length, util reaching the end of the file
        length = fread(buffer, BUFFER_SIZE, sizeof(char), intput);
    }
    fclose(input);
    fclose(output);
    return 0;
}

C API for positioning the file pointer:

int fseek(FILE* stream, long int offset, int whence);
long int ftell(FILE* stream);
void rewind(FILE* stream);

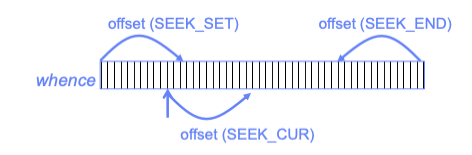

For fseek() the offset is interpreted based on the whence argument:

SEEK_SET: Then offset interpreted from beginning (position 0)
SEEK_END: Then offset interpreted backwards from end of file
SEEK_CUR: Then offset interpreted from the current position

What’s in a `FILE`?

File descriptor (from call to the low-level open API)
An array buffer
Lock (In case multiple threads use the FILE concurrently)
some other stuff…

When you call fwrite, what happens to the data you provided?

It gets written to FILE’s buffer
If the FILE’s buffer is full, then it is flushed, meaning it’s written to the underlying file descriptor
The C standard library may flush the FILE more frequently
- e.g., if it sees a certain character in the stream
When you write code, make the weakest possible assumptions about how data is flushed from FILE buffers

char x = 'c';
FILE* f1 = fopen("file.txt", "w");
fwrite("b", sizeof(char), 1, f1);
FILE* f2 = fopen("file.txt", "r");
fread(&x, sizeof(char), 1, f2);

The call to fread might see the latest write 'b', or it might miss it and see end of file, in which case x will remain 'c'.

The first fwrite might not have gotten into the kernel depending on whether it got flushed or not. We need to explicitly flush the buffer after fwrite

fwrite("b", sizeof(char), 1, f1);
fflush(f1);

Low-Level File API: File Descriptors

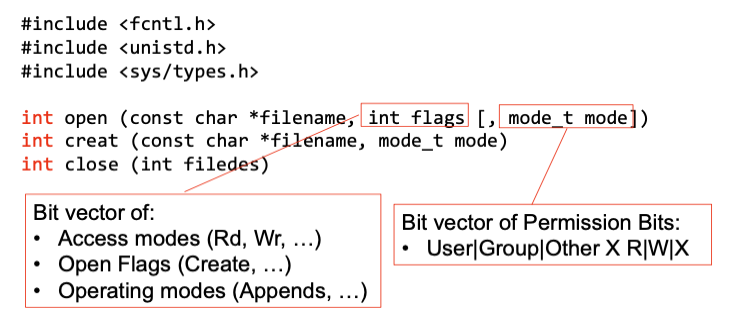

The integer return from open() is a file descriptor. This is how OS object representing the state of a file. User can use that as the “handle” to the file.
Operations on file descriptors
- Open system call created an open file description entry in system-wide table of open files
- Open file description object in the kernel represents an instance of an open file
System default file descriptors for stdin, stdout, stderr

#include <unistd.h>
STDIN_FILENO ‐ macro has value 0
STDOUT_FILENO ‐ macro has value 1
STDERR_FILENO ‐ macro has value 2

Get file descriptor inside FILE *

int fileno(FILE *stream);

Make FILE* from descriptor

FILE *fdopen(int filedges, const char* opentype);

Read data from open file using file descriptor:

// Reads up to maxsize bytes
// returns bytes read, 0 => EOF, ‐1 => error
ssize_t read (int filedes, void *buffer, size_t maxsize)

Write data to open file using file descriptor

// returns bytes written
ssize_t write (int filedes, const void *buffer, size_t size)

Reposition file offset with kernel(this is independent of any position held by high-level FILE descriptor for this file!)

off_t lseek (int filedes, off_t offset, int whence)

Wait for i/o to finish

int fsync (int fildes)

// wait for ALL to finish
void sync (void)

A little example

#include <fcntl.h>
#include <unistd.h>
#include <sys/types.h>
int main() {
    char buf[1000];
    int      fd = open("lowio.c", O_RDONLY, S_IRUSR | S_IWUSR);
    ssize_t  rd = read(fd, buf, sizeof(buf));
    int     err = close(fd);
    ssize_t  wr = write(STDOUT_FILENO, buf, rd);
}

Other Low-Level APIs

Operations specific to terminals, device, networking
- e.g., ioctl
Duplicating descriptors
- int dup2 (int old, int new)
- int dup (int old)
Pipes - channel
- int pipe(int pipefd[2])
- writes to pipefd[1] can be read from pipefd[0]
Memory mapped files
File Locking
Asynchronous I/O
Generic I/O Control Operations

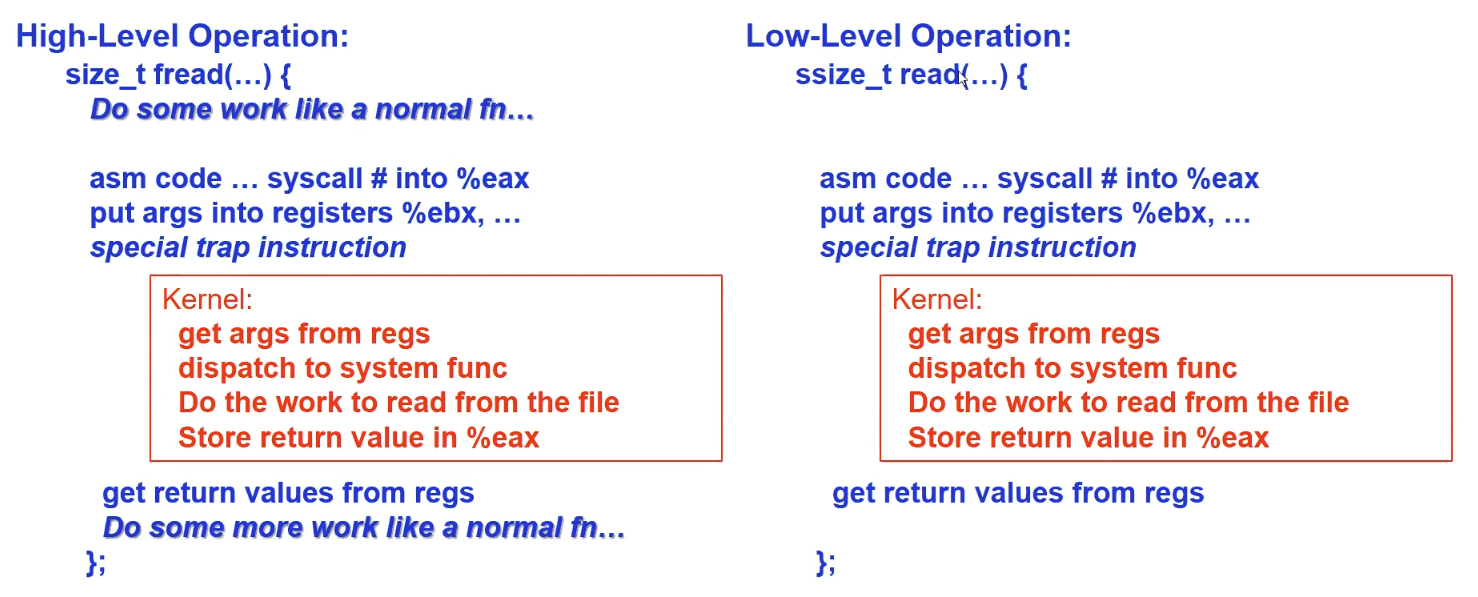

High-Level vs. Low-Level File APIs

As you can see, fread() does more work before going into the kernel. Internally, the fread() maintains a buffer. When reading from the kernel, fread() put it into a local memory buffer, and all the subsequent freads() you do for a while just look in that buffer and grab the next BUFFER_SIZE without having to go into the kernel, as kernel processing is expensive and slower.

Streams vs. File Descriptors

Streams are buffered in user memory

printf("Beginning of line ");
sleep(10); // sleep for 10 seconds
printf("and end of line\n");

The printf function goes to the buffered version of stdout. When hitting the new line character, the buffer will be flushed out, so we print everything all at once.

However, if we use low-level C API calls, operations on file descriptors are visible immediately

write(STDOUT_FILENO, "Beginning of line ", 18);
sleep(10);
write("and end of line \n", 16);

This outputs “Beginning of line” 10 seconds earlier than and end of line. There is no buffering in this path at the bottom, but there is buffering in the path at top. However, the system/kernel level buffering is completely transparent to users. You won’t feel it.

Why Buffering in Userspace?

Avoid system call overhead
- Time to copy registers, transition to kernel mode, jump to system call handler, etc.

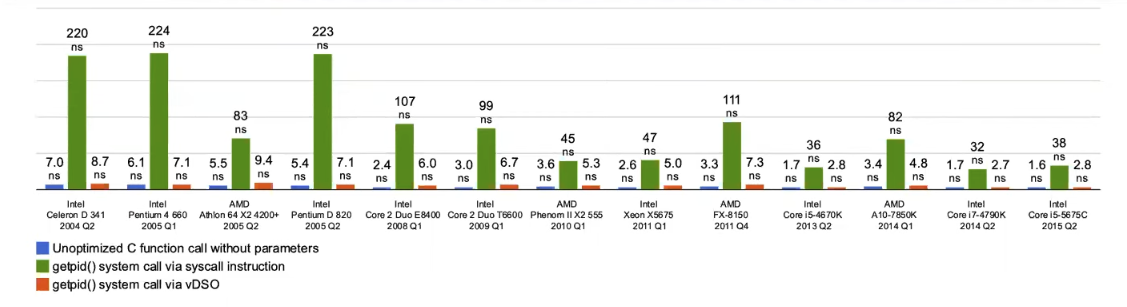

Minimum syscall time:
- syscalls are 25x more expensive than function calls(~100 ns)
- The blue bars are user level function calls
- The green bars are all system calls for getting getpid()!
- Not to make syscall if we can avoid them
Read/write a file byte by byte?
- With the syscall APIs, the max throughput is ~10MB/second
- With fgetc, the speed can keep up with your SSD
System call operations less capable
- Simplifies operating system
- Example: No “read until new line” operation
  - Solution: Make a big read syscall, find first new line in userspace

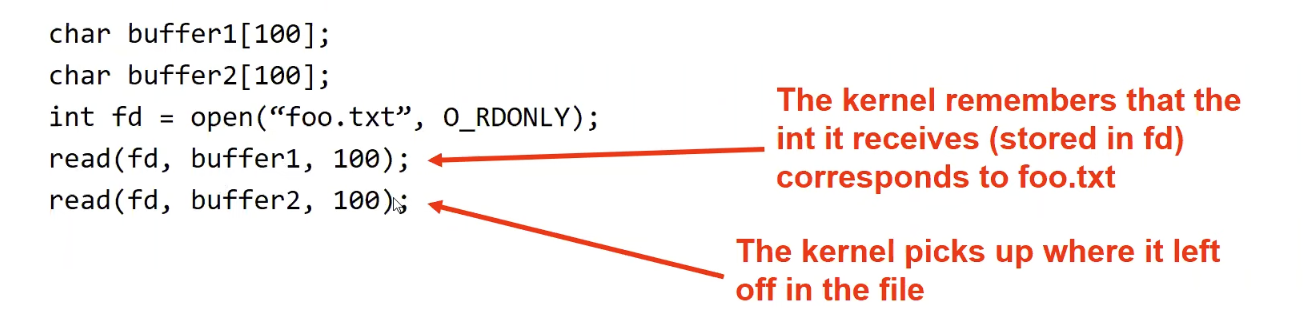

State Maintained by the kernel

When open() is successfully called, a file descriptor is created in the kernel. For each process, the kernel maintains a mapping from file descriptor to open file description.

On future system calls (e.g., read()), kernel looks up the open file description using the file descriptor and uses it to service the system call

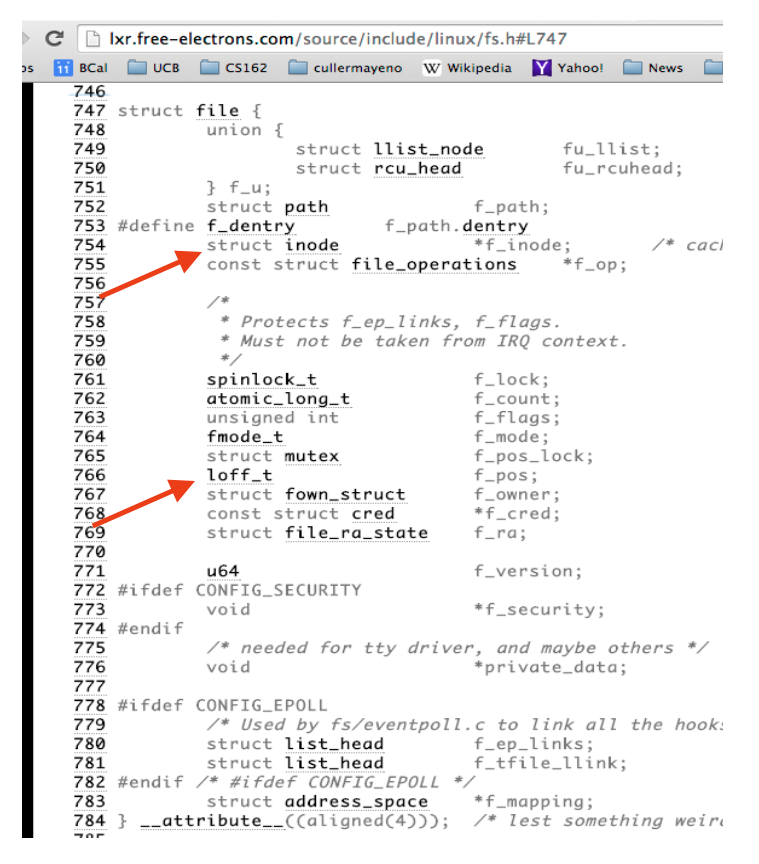

So what does an Open File Description look like?

An internal Data Structure describing everything about the file, such as

where it resides
its status
file descriptor number
How to access it

The two most important things are

where to find the file data on disk
The current position within the file

Abstract Representation of a Process

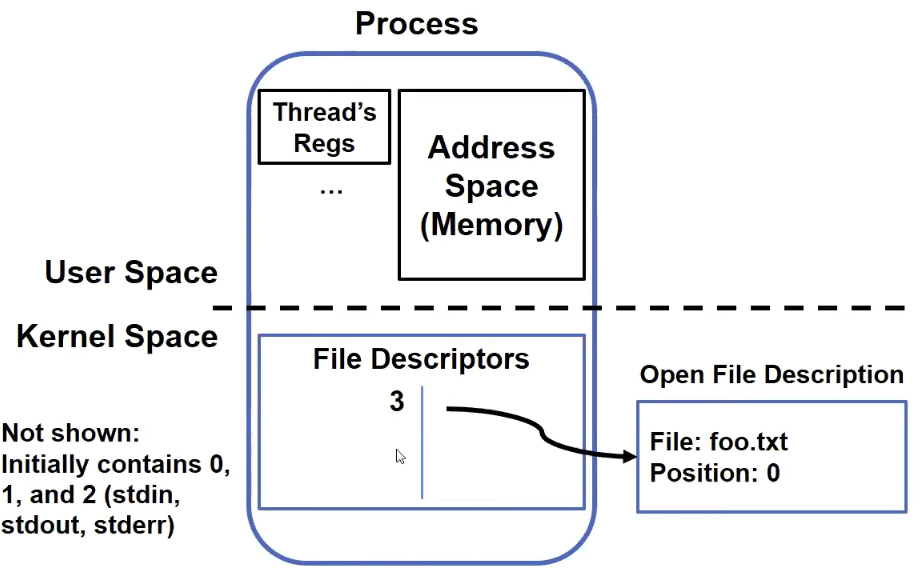

Suppose that we are executing open("foo.txt"), and the return value is 3.
- In the kernel space, we have this file descriptor table that maps a file descriptor (3 in this example) to an open file description.
Next, after we open the file, we execute read(3, buf, 100) and the return value is 100. The position in the screenshot above will become 100.
Finally, after close(3). The file descriptor(3) is removed from the table.

`fork()`

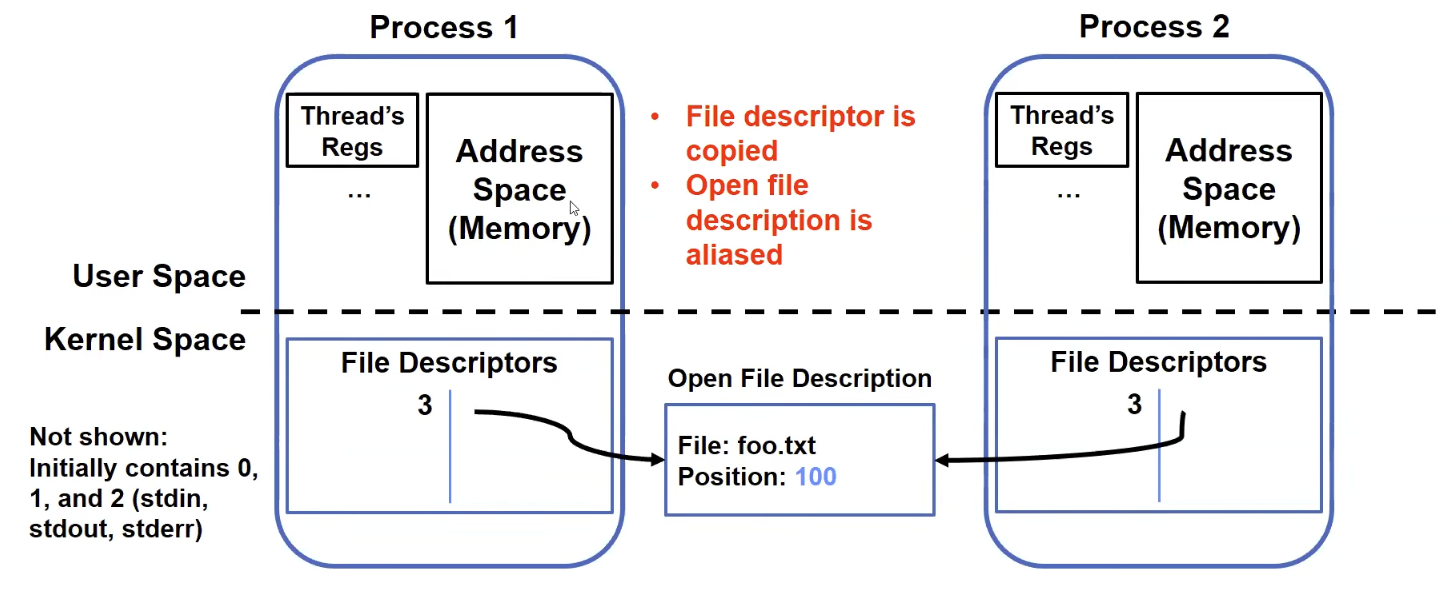

What if we don’t call close(3), and instead, we call fork()

We have forked a child process (#2). Now the File Descriptors table got duplicated. Both parent and the child processes point to the same open file description(shared), meaning either of them can read the file.
Next, if the parent process read 100 bytes, the position in the open file description will become 200. Now, if the child process read 100 bytes, since the open file description is shared, the position will become 300.
Finally, if the parent process execute close(0), it’ll remove itself from the table, but the child process still holds a reference to the open file description, so the file won’t be closed.

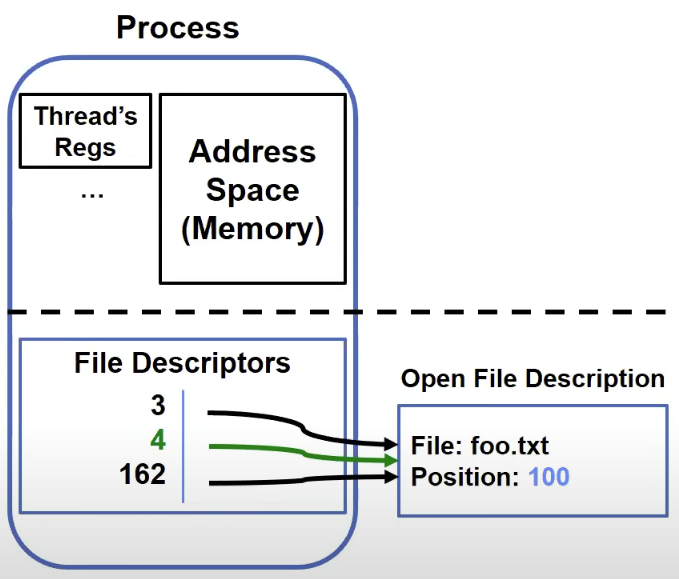

`dup and dup2`

The dup and dup2 functions let you duplicated file descriptors. For example, dup(3) will create a new file descriptor 4 from 3 that points to the same open file description. dup2(3, 162)let you specific a file descriptor(162) when duplicating the original file descriptor(3).
